ECOTIMEPRINT Time Attendance System

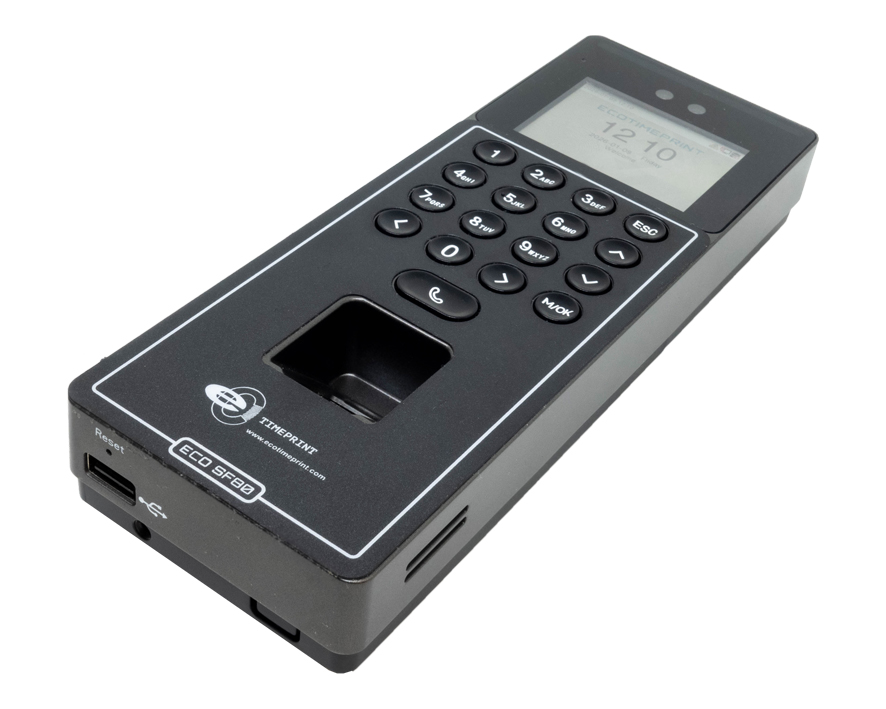

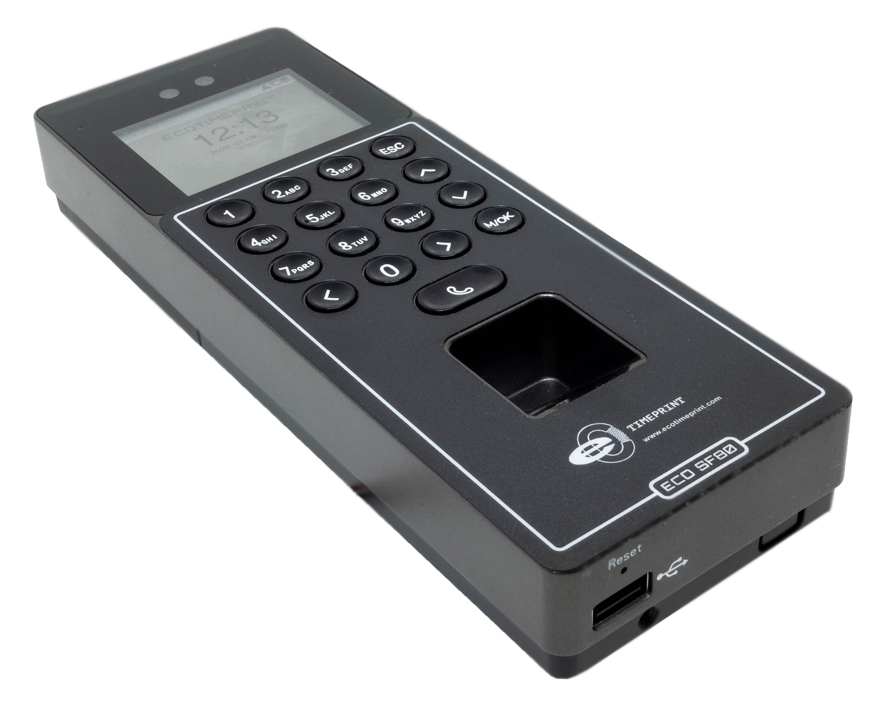

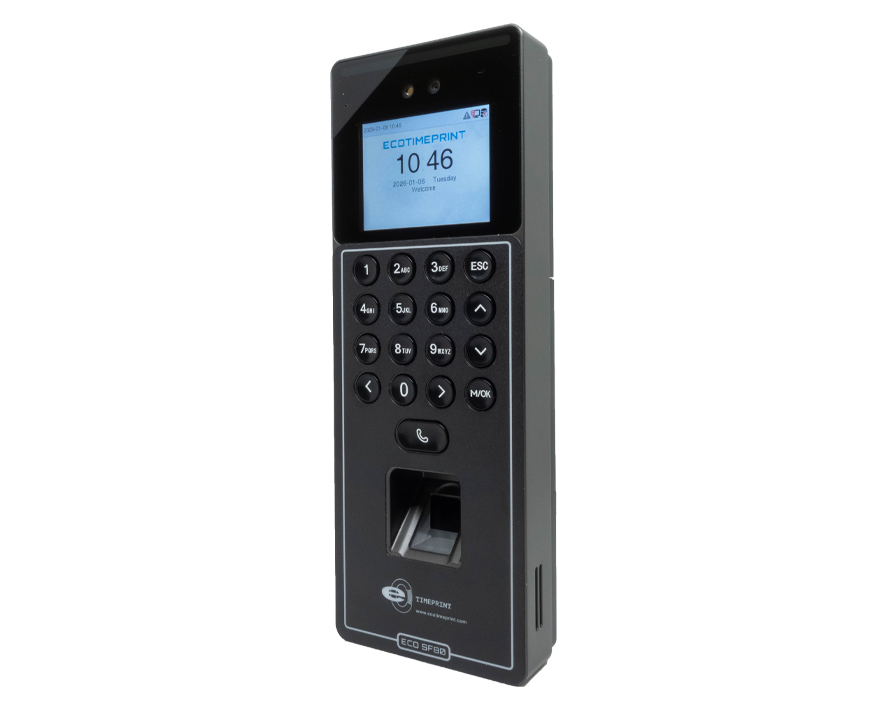

ECO SF80 is a smartface series entry-level time attendance and access control terminal designed for reliable face and fingerprint authentication. Powered by Visible Light Technology, the device automatically detects and verifies users upon approach, ensuring smooth and efficient daily operation. With accurate recognition and straightforward functionality, ECO SF80 provides a practical solution for basic security and attendance management needs.

Face

Fingerprint

Password

RFID Card / Mifare Card (Optional)

Highlight Features

Screen Display

2.4" color screen

Authentication Method

Fingerprint, Password, RFID Card/ Mifare Card (Optional)

Communication

TCP/IP, WiFi, USB Flash Disk

Storage

1,000 Face Capacity
1,000 Fingerprint Templates
100,000 Record Capacity

Door Access Control

Manage door entry

ECOTIMEPRINT ETA3

Time Attendance System for detailed report. Learn More

SPECIFICATIONS
Model	ECO SF80
Screen	2.4 color Screen
Door Access Function	Yes (Simple Door Access)
Communication	TCP/IP, WiFi, USB Flash Disk
Fingerprint Template	1,000
Face Template	1,000
User Capacity	1,000
Records Capacity	100,000
Algorithm version	10.0
Authentication Method	Face/ Fingerprint/ Password / ID Card / Mifare Card (Optional)
Identification Time	<1S
Authentication Mode	1:1, 1:N
Power	DC12V/3.0A
Operating Environment	-5℃ - 45℃, Humidity: 10% - 90%
Dimension(LWH)	1666325mm
