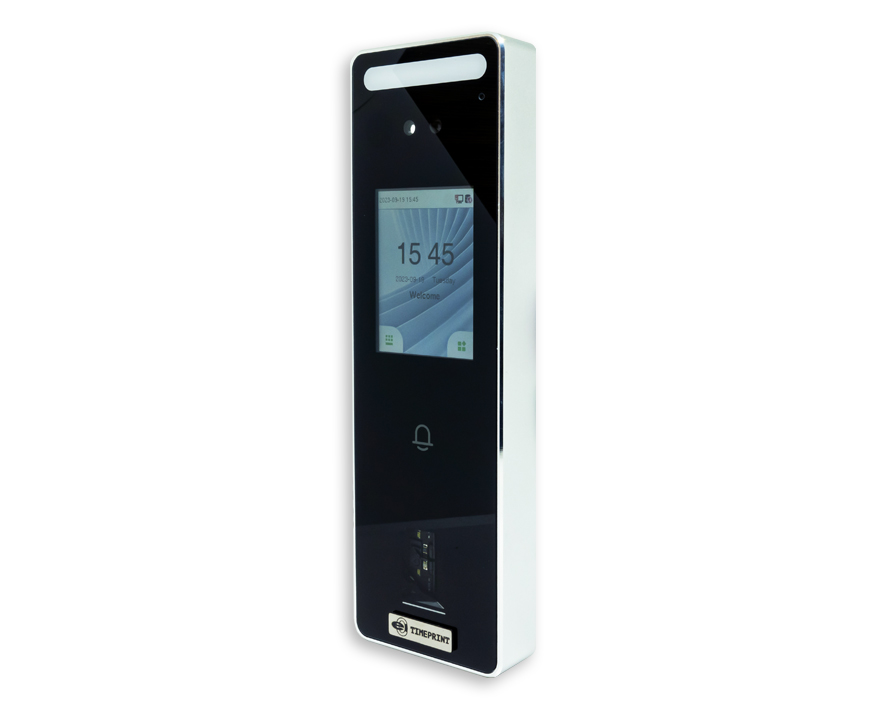

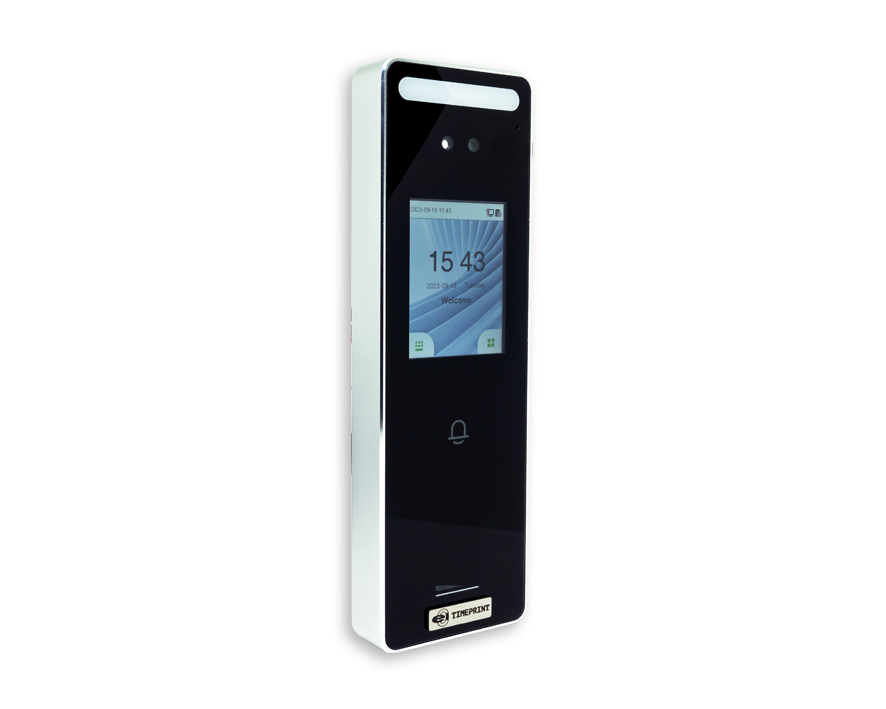

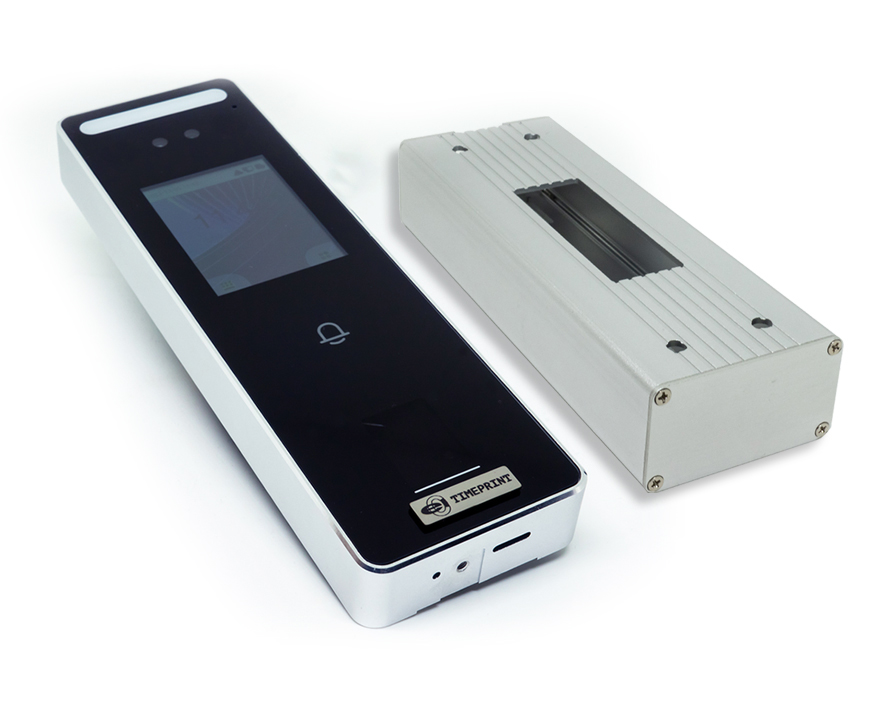

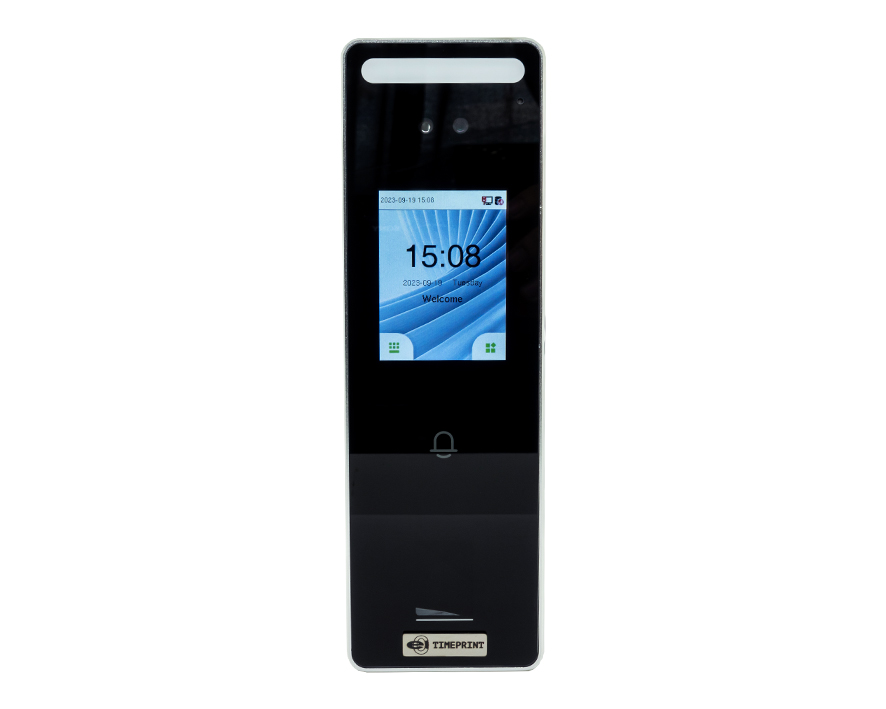

ECO SF200

ECO SF200 is a time attendance and door access terminal that support both face and fingerprint authentication. Its distinctive compact design sets it apart in our SmartFace series.

Utilizing Visible Light Technology, this terminal automatically performs recognition for a target from an extended distance, activating upon detecting a human face within its range. This results in superior recognition quality, enhancing both speed and accuracy.

Face

Face
Fingerprint

Fingerprint
Password

Password
RFID Card

RFID Card
ECO SF200

FEATURES

1. 2.4 inch touch screen.

2. Employee authentication methods: Face/ Fingerprint / Password / RFID Card.

3. Communication: TCP/IP, WiFi.

5. 1,000 Face, 1,000 Fingerprint Templates and 100,000 attendance records.

6. Full Door access function.

ECOTIMEPRINT ETA2

ECOTIMEPRINT ETA2

1. Up to 500 Schedule Available for Setting.
2. Define own Work Time, Rest Time, Overtime in each schedule.
3. Able to manage employee with multi-shift schedule.
4. Rounding function available to round workday, overtime and short hours.
5. Leave application available for employee to apply leave.
6. Comprehensive attendance report.

Learn More
SPECIFICATIONS
Model ECO SF200
Screen 2.4 inch touch Screen
Door Access Function Yes
Communication TCP/IP, WiFi
Fingerprint Template 1,000
Face Template 1,000
User Capacity 1,000
Records Capacity 100,000
Algorithm version 10.0
Authentication Method Face/ Fingerprint/ Password / ID Card / Mifare Card (Optional)
Identification Time <1S
Authentication Mode 1:1, 1:N
Power DC12V/3.0A
Operating Environment -5℃ - 45℃, Humidity: 10% - 90%
Dimension(L*W*H) 185*58.5*20mm

Note: Specifications are subject to change

Downloads:

BROCHURE USER GUIDE DOOR ACCESS DIAGRAM
