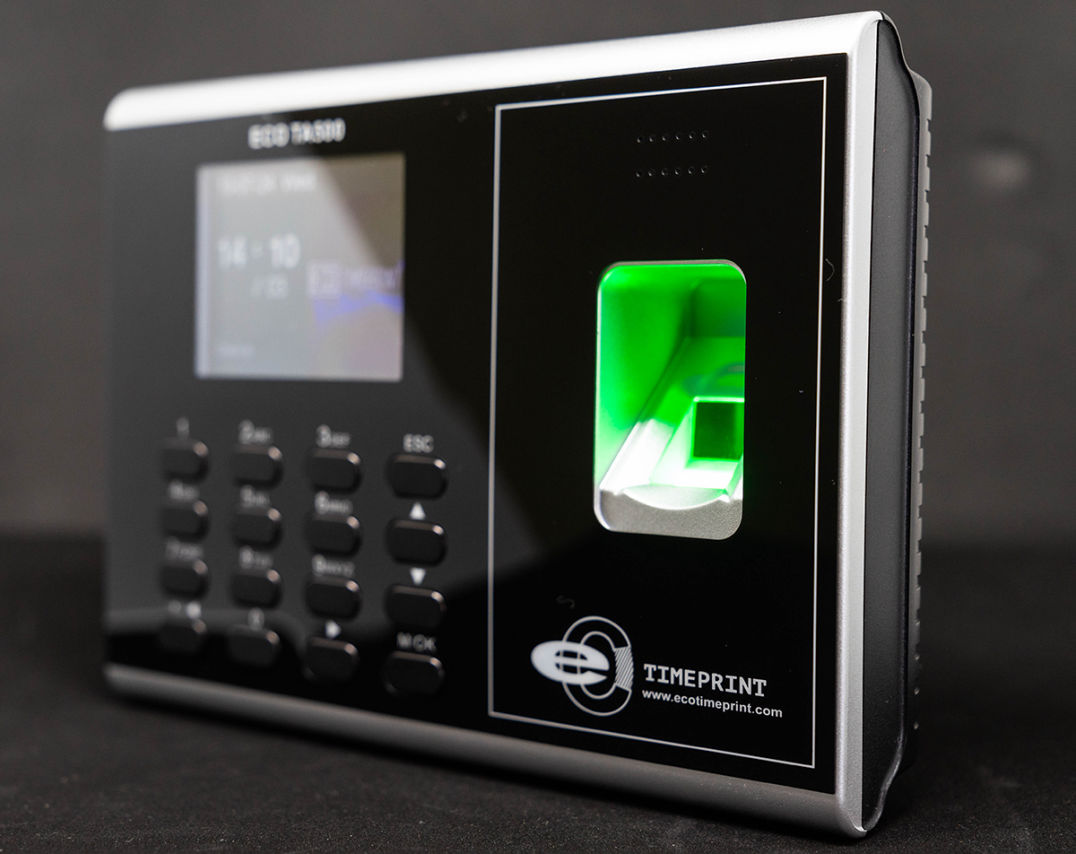

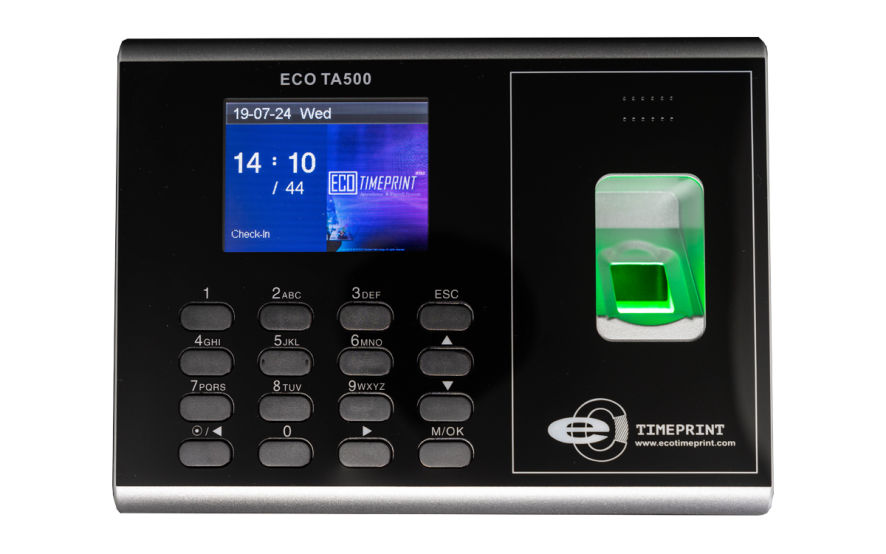

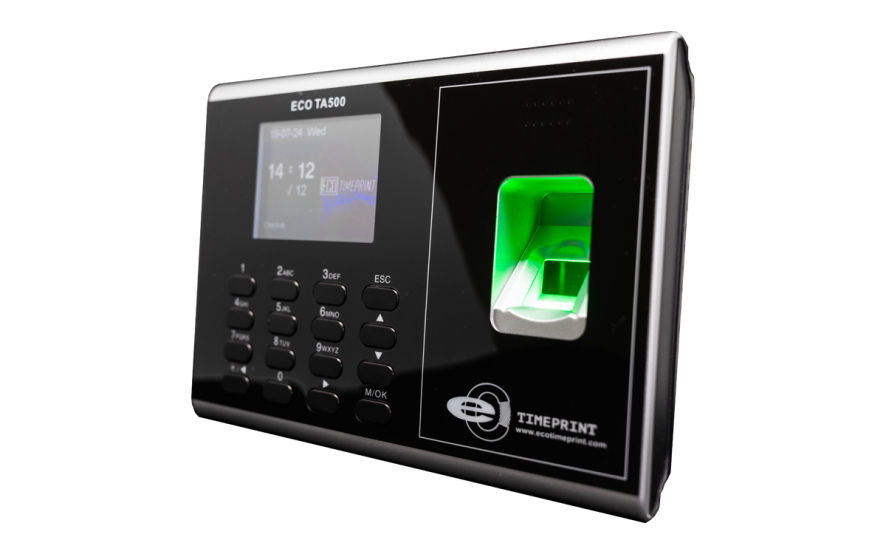

ECO TA500 is standalone fingerprint time and attendance system with built in battery which can eliminate the trouble of power failure. It could store 3,000 fingerprint templates and 80,000 transaction records. Besides, it also comes with simple door access function. With the elegant appearance and reliable quality, you can get the best from it.

Fingerprint
Fingerprint
Fingerprint
Password
Fingerprint
RFID Card

Highlight Features

Screen Display

Screen Display

2.8 inch TFT Color Screen
Authentication

Authentication Method

Fingerprint, Password, RFID Card
Communication

Communication

TCP/IP, USB Flash Disk
Capacity

Storage

3,000 User Capacity
100,000 Record Capacity
Less than 1 seconds

Identification Time

Less than 1 seconds
Built in Backup Battery

Built-in Backup Battery

Lasts for 4 hours or longer
Simple Door Access

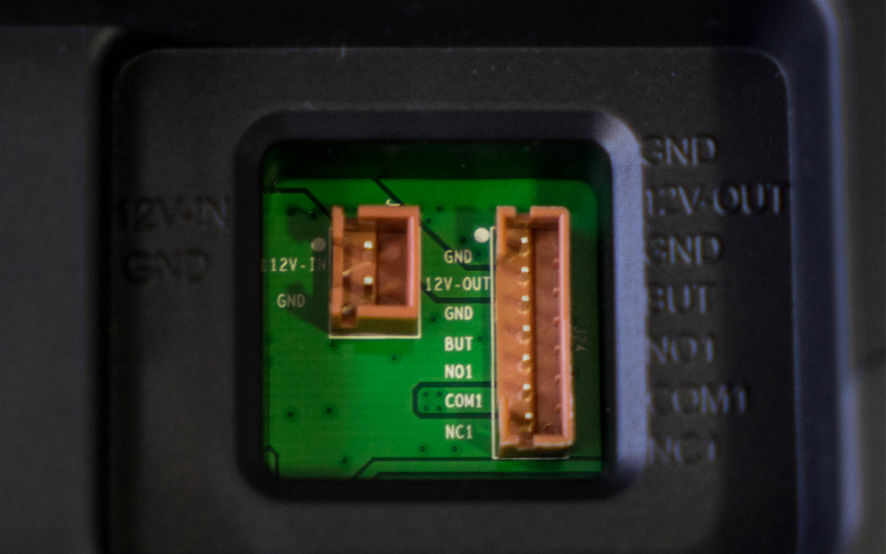

Simple Access Control

Manage door entry
ECOTIMEPRINT ETA3

ECOTIMEPRINT ETA3

Time Attendance System for detailed report. Learn More
SPECIFICATIONS
Model ECO TA500
Screen 2.8 inch TFT Color Screen
Door Access Function Yes (Simple Door Access)

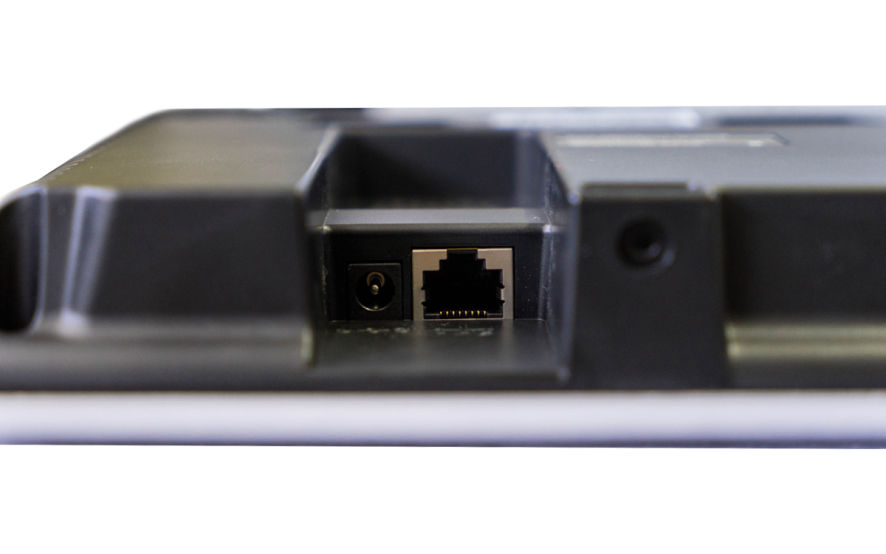

Communication TCP/IP, USB Flash Disk
Other Function Build in Backup Battery (Duration 4 hour or longer)
Fingerprint Template 3,000
Records Capacity 100,000
Microprocessor 1GHz/1000MHz or higher
Memory 128MB & SDRAM 32MB
Algorithm version 10.0
Authentication Method Fingerprint/ Password/ RFID Card (Optional)
Identification Time <1S
Authentication Mode 1:1, 1:N
Door Access Function Simple Door Access Function
Bell Built-in timing bell
Operation Mode Off-line/Online
Power DC12V/1.5A
Operating Environment 0℃ - 45℃, Humidity: 20% - 80%
Dimension(L*W*H) 184*136*37.6mm

Note: Specifications are subject to change
