ECOTIMEPRINT | ECO301D

ECO301D

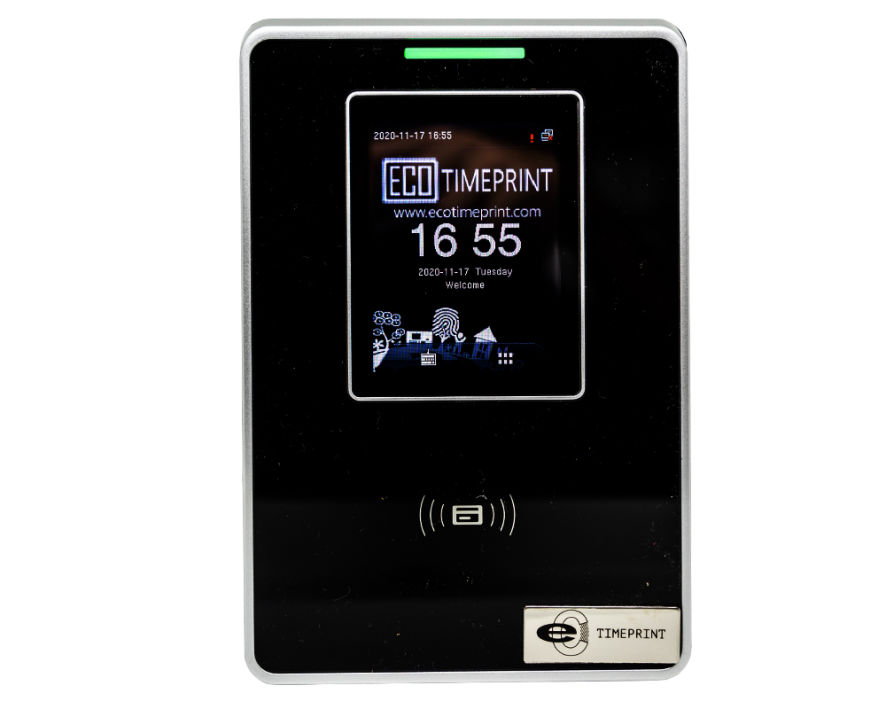

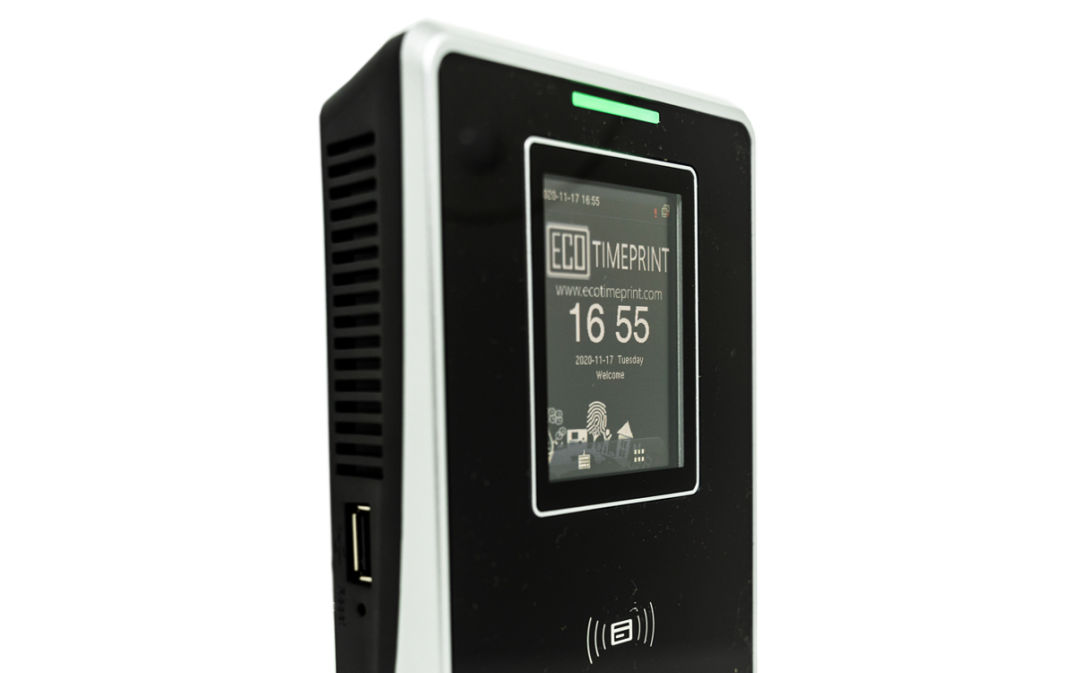

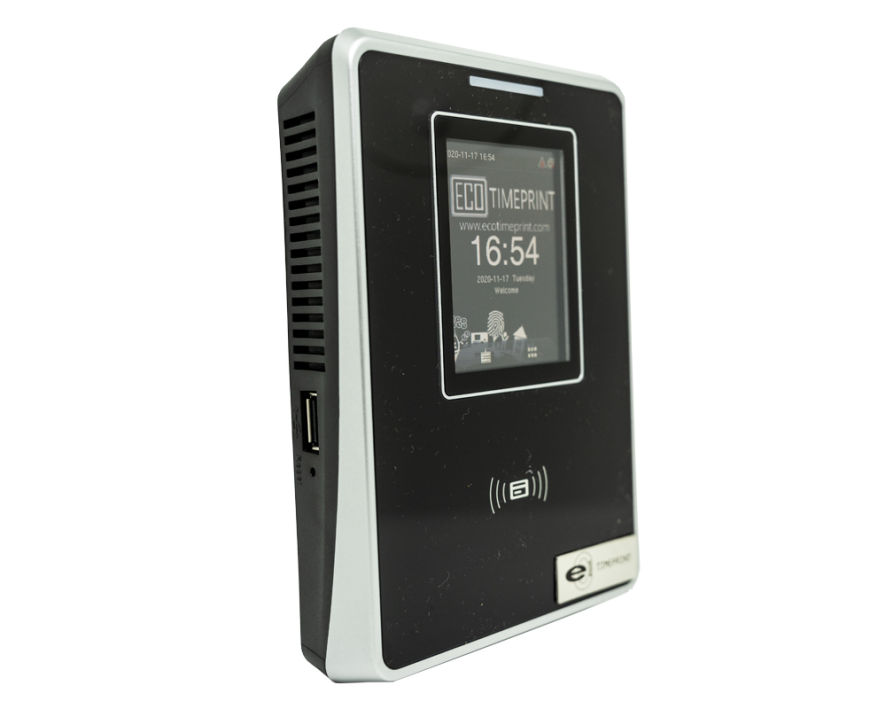

ECO301D is a RFID Access Control Terminal which possesses a 3 inch Color Touch Screen. With multi-verification methods by combinations of PIN, password and card, high level of security and flexibility are guaranteed. Moreover, the product supports USB flash drive for offline data management, as well as is equipped with multiple alarm outputs such as Tamper Proof Switch and Duress Alarm. Its convenience and adaptability allow it to be well deployed in offices and any other public facilities.

RFID Card

Password

FEATURES

1. 3 inch Color Touch Screen.

2. Employee authentication methods: RFID Card/ Password.

3. Communication: TCP/IP & USB Flash Disk

4. 30,000 Card Capacity and 100,000 attendance records.

6. Door access function.

ECOTIMEPRINT ETA2

1. Up to 500 Schedule Available for Setting.
2. Define own Work Time, Rest Time, Overtime in each schedule.
3. Able to manage employee with multi-shift schedule.
4. Rounding function available to round workday, overtime and short hours.
5. Leave application available for employee to apply leave.
6. Comprehensive attendance report.

Learn More

SPECIFICATIONS
Model	ECO 301D
Screen	3 inch Touch Screen
Communication	TCP/IP, USB Flash Disk
RFID Card Template	30,000
User Capacity	30,000
Records Capacity	100,000
Authentication Method	RFID Card / Password
Identification Time	<1S
Authentication Mode	1:1, 1:N
Language	English
Operation Mode	Off-line/Online
Power	DC12V/3.0A
Operating Environment	0℃ - 45℃, Humidity: 20% - 80%
Dimension(LWH)	16010535mm

Note: Specifications are subject to change

Downloads:

BROCHURE DOOR ACCESS DIAGRAM
