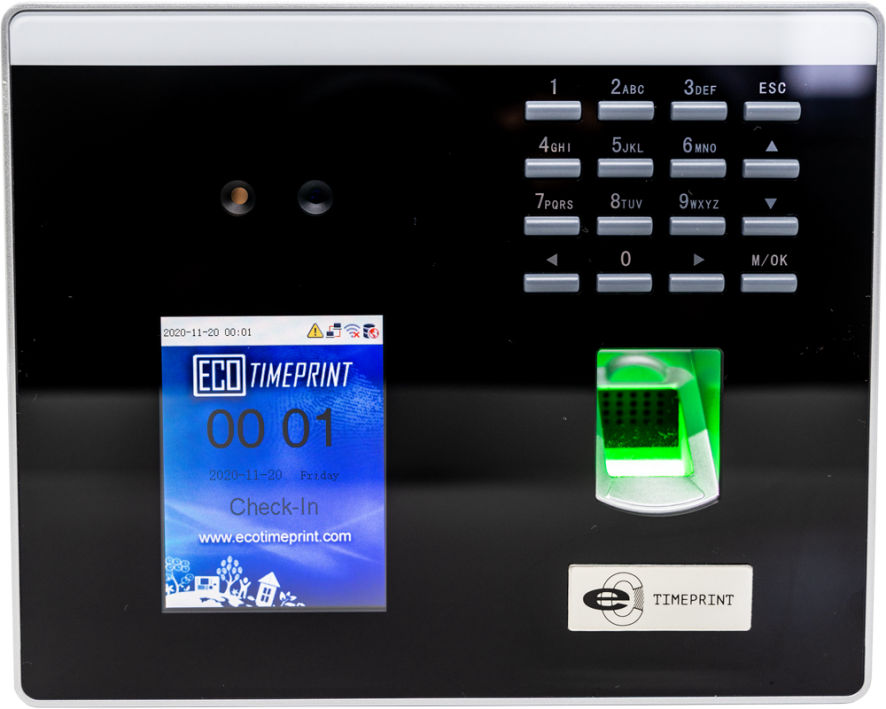

ECO SF100 time attendance terminal with visible light facial recognition technology. It will automatically perform recognition for a target in a long distance when it detects a human face in the detection distance to deliver better recognition quality in terms of speed and accuracy than the previous near-infrared facial recognition terminals.

Face
Face
Fingerprint
Fingerprint
Password
Password
RFID Card
RFID Card

Highlight Features

Screen Display

Screen Display

2.8 inch TFT Color Screen
Authentication

Authentication Method

Fingerprint, Password, RFID Card
Communication

Communication

WiFi, TCP/IP, USB Flash Disk
Capacity

Storage

500 Face Capacity
500 Fingerprint Templates
150,000 Record Capacity
Simple Door Access

Simple Access Control

Manage door entry
ECOTIMEPRINT ETA3

ECOTIMEPRINT ETA3

Time Attendance System for detailed report. Learn More
SPECIFICATIONS
Model ECO SF100
Screen 2.8 inch Color Screen
Door Access Function Yes (Simple Door Access Only)
Communication WiFi, TCP/IP, USB Flash Disk
Fingerprint Template 2,000
Face Template 1,500
User Capacity 1,500
Records Capacity 100,000
Algorithm version 10.0
Authentication Method Face/ Fingerprint/ Password/ RFID Card
Identification Time <1S
Authentication Mode 1:1, 1:N
Bell Built-in timing bell
Operation Mode Off-line/Online
Power DC12V/1.5A
Operating Environment 0℃ - 45℃, Humidity: 20% - 80%
Dimension(L*W*H) 170*138*32.3mm

Note: Specifications are subject to change
