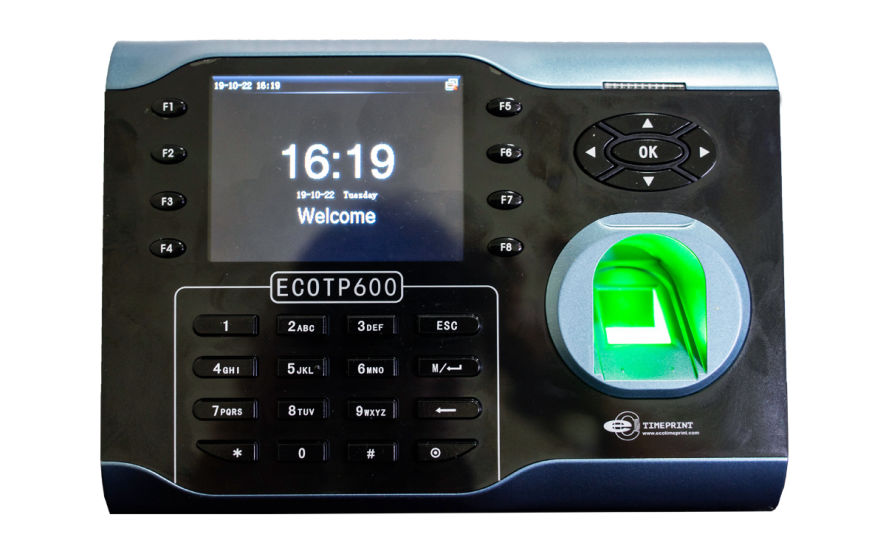

ECO TP600

ECO TP600 is an innovative biometric fingerprint time attendance system, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. It can store 8,000 fingerprint templates & 200,000 record transactions. The 3.5 TFT screen can display more information vividly, fingerprint image quality and verification result.

Fingerprint
Fingerprint
Fingerprint
Password
Fingerprint
RFID Card (Optional)

Highlight Features

Screen Display

Screen Display

3.5 inch TFT Color Screen
Authentication

Authentication Method

Fingerprint, Password, RFID Card/ Mifre Card (Option)
Communication

Communication

TCP/IP, USB Flash Disk
Capacity

Storage

8,000 Fingerprint Capacity
200,000 Record Capacity
Less than 1 seconds

Identification Time

Less than 1 seconds
ECOTIMEPRINT ETA3

ECOTIMEPRINT ETA3

Time Attendance System for detailed report. Learn More
SPECIFICATIONS
Model ECO TP600
Screen 3.5 inch TFT Color Screen
Communication TCP/IP, USB Flash Disk
Fingerprint Template 8,000
Records Capacity 200,000
Algorithm version 10.0
Authentication Method Fingerprint/ Password/ RFID Card/Mifare Card(Optional)
Identification Time <1S
Authentication Mode 1:1, 1:N
Operation Mode Off-line/Online
Power DC12V/1.5A
Operating Environment 0℃ - 45℃, Humidity: 20% - 80%
Dimension(L*W*H) 192*41*140mm

Note: Specifications are subject to change
