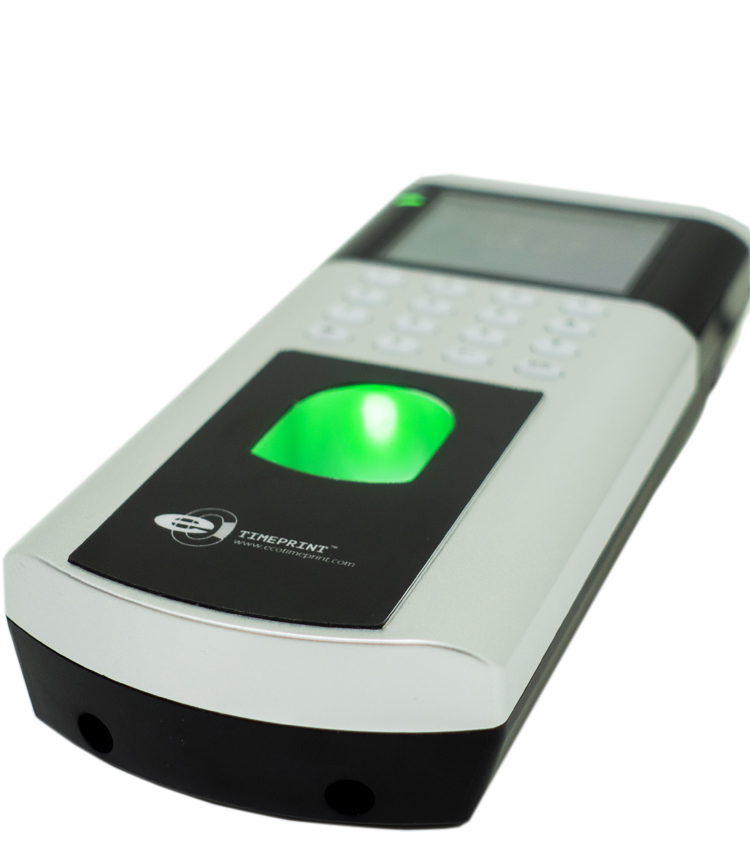

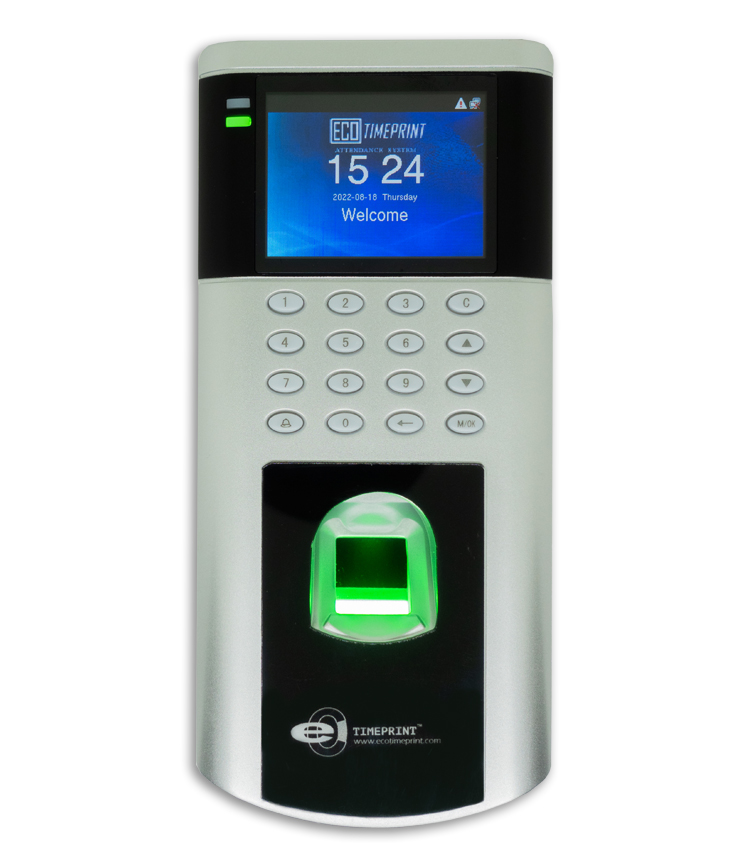

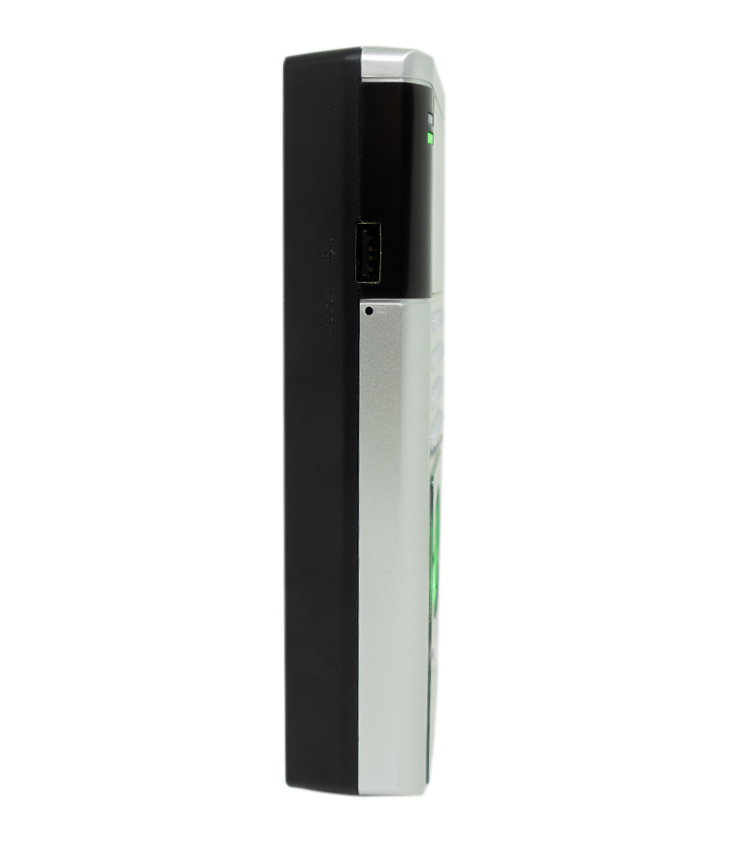

ECO2200D is an ultra-thin fingerprint time attendance and access control terminal which offers unparalleled performance with advanced algorithm for reliability. It provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any access control that supports standard wiegand signal. TCP/IP, RS485 and Wi-Fi are also available that the device can be used in different networks.
SPECIFICATIONS | |
---|---|
Model | ECO 2600D |
Screen | 2.4 inch TFT Color Screen |
Communication | TCP/IP, USB Flash Disk |
Fingerprint Template | 1,500 |
Records Capacity | 80,000 |
Algorithm version | 10.0 |
Authentication Method | Fingerprint/ Password/ RFID Card |
Identification Time | <1S |
Authentication Mode | 1:1, 1:N |

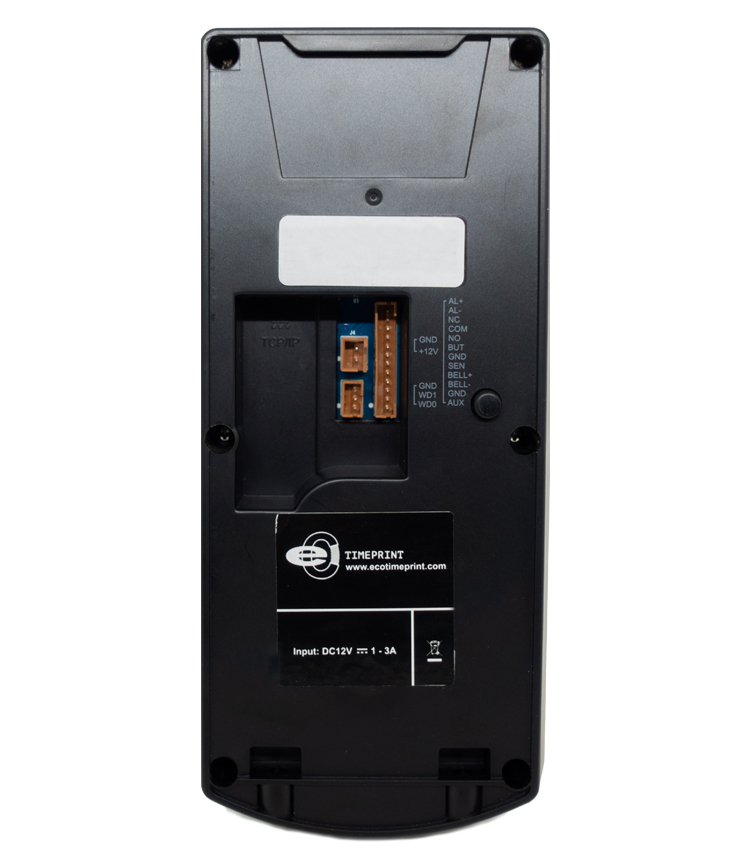

Access Control Interface | Wiegand 26/34, Door Lock, Siren, Release Button, Doorbell, Door Sensor |
Professional Access Function | door by multilevel verification, anti-pass back |
Power | DC12V/3A |
Operating Environment | 0℃ - 45℃, Humidity: 20% - 80% |
Dimension(L*W*H) | 83mm*34mm*181mm |
Note: Specifications are subject to change
