ECO2200D

ECO2200D is an ultra-thin fingerprint time attendance and access control terminal which offers unparalleled performance with advanced algorithm for reliability. It provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any access control that supports standard wiegand signal. TCP/IP, RS485 and Wi-Fi are also available that the device can be used in different networks.

Fingerprint

Fingerprint
Password

Password
RFID Card

RFID Card
ECO2200D

FEATURES

1. 2.8 inch TFT color screen.

3. Employee authentication methods: Fingerprint / Password / RFID Card.

4. Communication: TCP/IP, USB Flash Disk & WiFi.

5. 3,000 Fingerprint Templates and 30,000 attendance records.

6. Door access function.

ECOTIMEPRINT ETA2

ECOTIMEPRINT ETA2

1. Up to 500 Schedule Available for Setting.
2. Define own Work Time, Rest Time, Overtime in each schedule.
3. Able to manage employee with multi-shift schedule.
4. Rounding function available to round workday, overtime and short hours.
5. Leave application available for employee to apply leave.
6. Comprehensive attendance report.

Learn More
SPECIFICATIONS
Model ECO 2200D
Screen 2.4 inch TFT Color Screen
Communication Wifi, TCP/IP, USB Flash Disk
Fingerprint Template 3,000
Records Capacity 30,000
Algorithm version 10.0
Authentication Method Fingerprint/ Password/ RFID Card
Identification Time <1S
Authentication Mode 1:1, 1:N

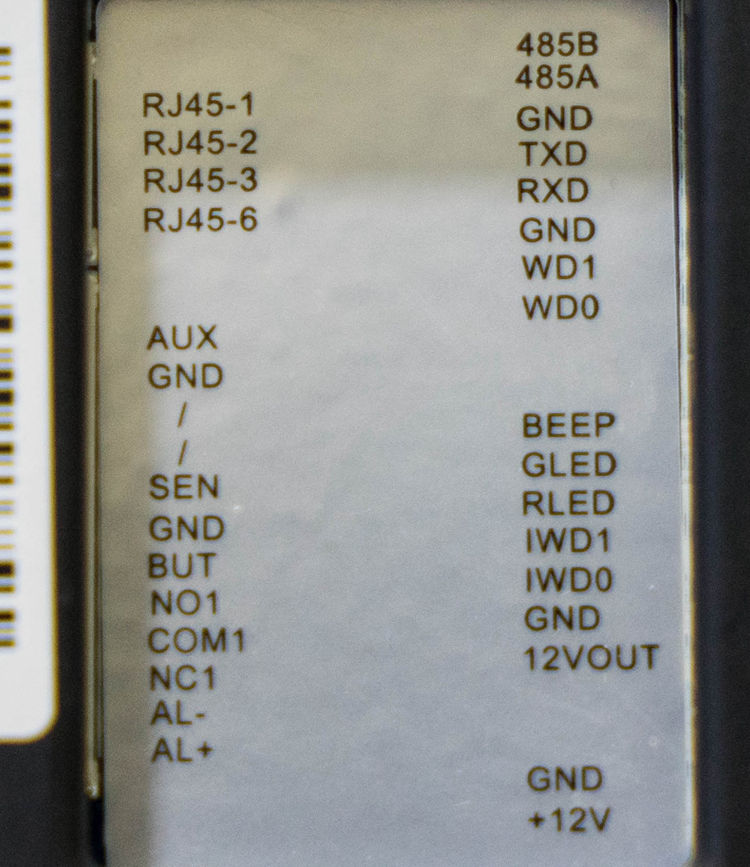

Access Control Interface Wiegand 26/34, Door Lock, Siren, Release Button, Doorbell, Door Sensor
Professional Access Function Open door by multilevel verification, anti-pass back
Language English
Bell Built-in timing bell
Operation Mode Off-line/Online
Power DC12V/3A
Operating Environment 0℃ - 45℃, Humidity: 20% - 80%
Dimension(L*W*H) 158.5*78*19.4mm

Note: Specifications are subject to change

Downloads:

BROCHURE USER GUIDE DOOR ACCESS DIAGRAM
