ECO SF200 Pro

A Smartface Series

Brochure User Manual Door Access Diagram

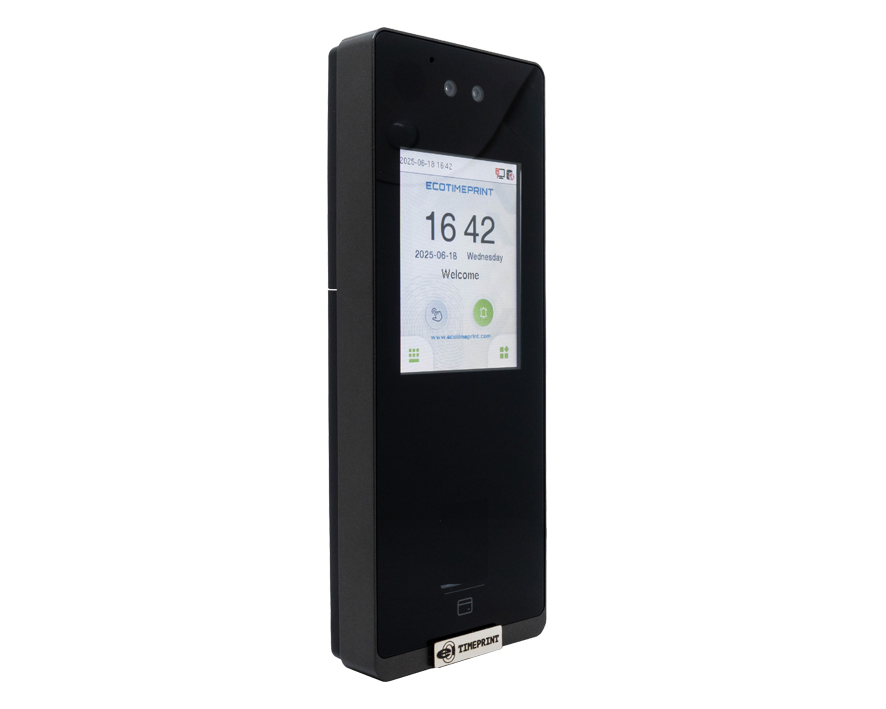

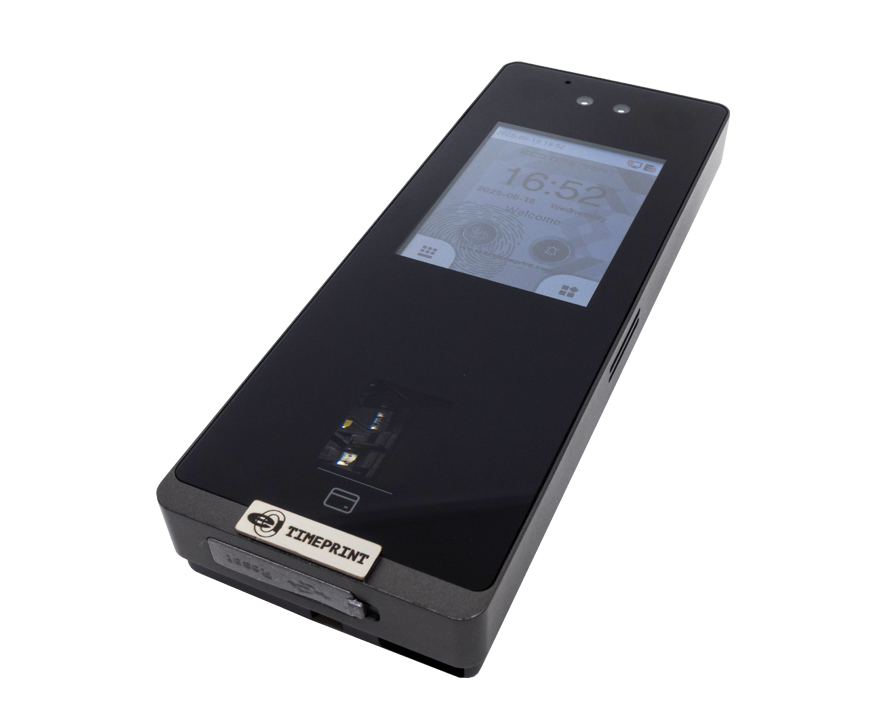

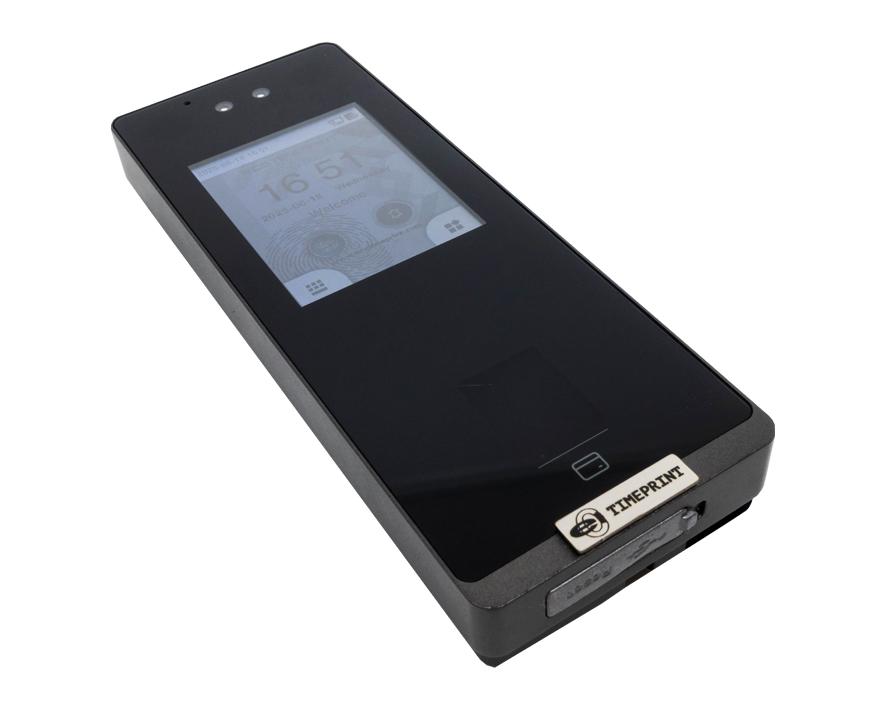

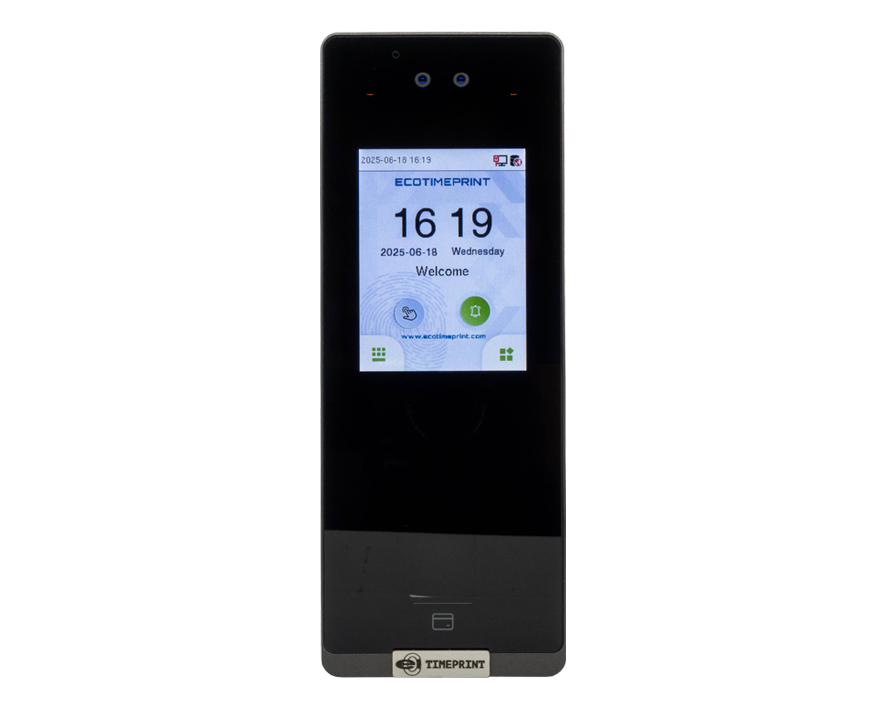

The ECO SF200 Pro is a compact time attendance and door access terminal that supports face, fingerprint, and card verification. Part of SmartFace series, it features a sleek design. Equipped with Visible Light Technology, it automatically detects and recognizes faces from a distance, ensuring faster and more accurate authentication. The SF200 also offers flexible data download options using TCP/IP, Wi-Fi and USB flash drive for easy and convenient data management.

Face

Fingerprint

Password

RFID Card / Mifare Card (Optional)

Highlight Features

Screen Display

2.8 touch screen

Authentication Method

Fingerprint, Password, RFID Card/ Mifare Card (Optional)

Communication

TCP/IP, WiFi, USB Flash Disk

Storage

3,000 Face Capacity
6,000 Fingerprint Templates
150,000 Record Capacity

Door Access Control

Manage door entry

ECOTIMEPRINT ETA3

Time Attendance System for detailed report. Learn More

SPECIFICATIONS
Model	ECO SF200 Pro
Screen	2.8 inch touch Screen
Door Access Function	Yes
Communication	TCP/IP, WiFi, USB Flash Disk
Fingerprint Template	6,000
Face Template	3,000
User Capacity	6,000
Records Capacity	150,000
Algorithm version	10.0
Authentication Method	Face/ Fingerprint/ PIN / ID Card / Mifare Card (Optional)
Identification Time	<1S
Authentication Mode	1:1, 1:N
Power	DC12V/3.0A
Protection Rate	IP65 (Water and Dust Resistance)
Operating Environment	-5℃ - 45℃, Humidity: 10% - 90%
Dimension(LWH)	1666325mm
